Stereo Width Measurement Explained for Audio Pros
Stereo width measurement quantifies the difference between left and right audio channels to assess the perceived horizontal spread of sound in a mix. The standard metric for this is the Interaural Cross-Correlation Coefficient (IACC), which runs from 1.0 (perfectly identical channels, pure mono) to 0 (fully decorrelated, maximum width), with negative values flagging phase problems. Every mix decision you make about space, depth, and translation to mono playback connects directly to this number. Tools like correlation meters, frequency-band analyzers, and platforms like Mixanalytic give you the data to make those decisions with precision rather than guesswork.
What is stereo width measurement and how does IACC work?
Stereo width measurement is the process of quantifying how different the left and right channels of a stereo signal are from each other. The IACC measures decorrelation at key frequencies including 500 Hz, 1000 Hz, and 2000 Hz, and its values map directly to listener perception of spatial width. That correlation between measurement and perception is what makes IACC the most reliable single metric in stereo sound analysis.

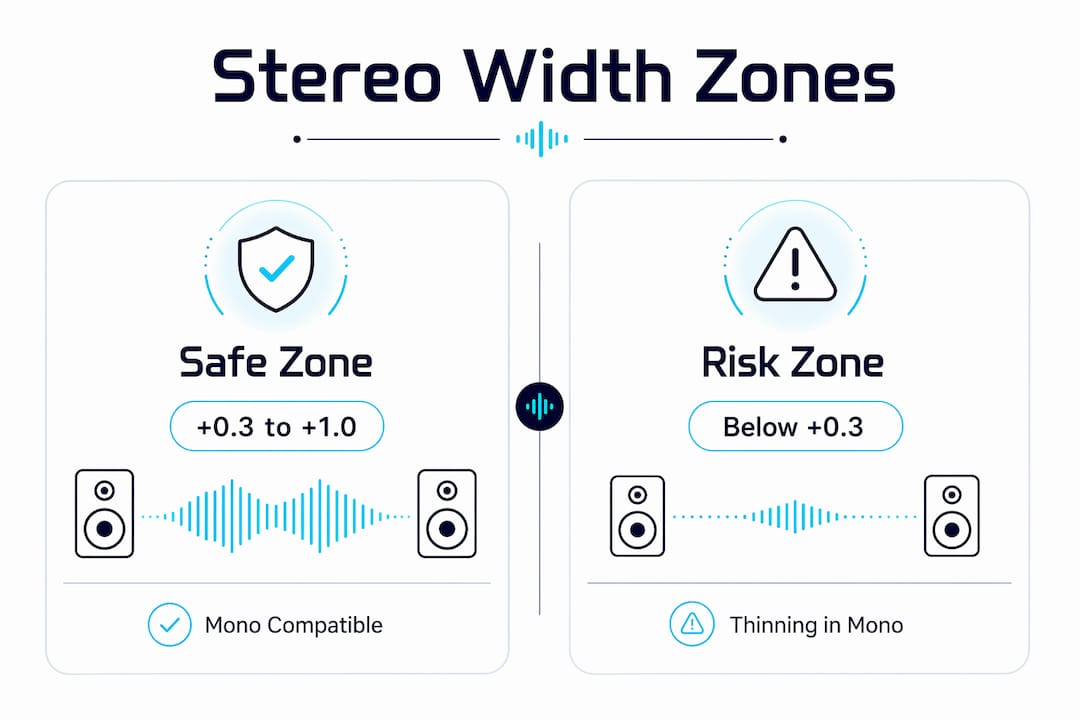

Reading the IACC scale in practice breaks down into three zones:
| Zone | Correlation range | What it means for your mix |
|---|---|---|
| Safe | +0.3 to +1.0 | Mono compatible; width is controlled and translates well |
| Caution | 0 to +0.3 | Approaching maximum decorrelation; mono playback may thin out |
| Danger | Below 0 | Phase cancellation audible in mono; mix needs correction |
Safe stereo mixes land between +0.3 and +1.0 on the correlation scale. Readings below +0.3 risk audible thinning on mono devices, and anything below 0 produces cancellations you will hear immediately on a phone speaker or club PA in mono mode.
A single global correlation number does not tell the whole story, though. Correlation meters average across the full spectrum, which means a narrow band of severe phase cancellation at 800 Hz can hide behind an otherwise healthy overall reading. This is why measuring stereo width requires spectrum analysis alongside the meter, not instead of it.
Pro Tip: Run your mix through a frequency-band correlation display, not just a global meter. A healthy overall reading can mask a narrow-band cancellation that will destroy your low-mids on a mono Bluetooth speaker.
Stereo width vs. panning: what’s the actual difference?
Panning and stereo width are not the same thing, and conflating them leads to real mixing errors. Panning shifts position by changing the level difference between channels. Width is about decorrelation, meaning the degree to which the signal content in the left channel differs from the right channel.
The practical distinction matters more than it sounds:
- A sound panned dead center can still be extremely wide if the left and right channels carry different content, like a stereo reverb return.
- A mono signal hard panned to the left is narrow by definition because both channels carry identical information, just at different levels.
- A stereo room mic recording panned to center can sound wider than a synthesizer pad panned hard left and right, depending on how decorrelated the mic signals are.
- Widening a mono signal with panning alone does nothing to its IACC reading. The channels remain identical.
This distinction shapes how you approach spatial decisions in a mix. Position and width are two separate axes of the stereo field. You can have a sound that sits at the center of the image but fills the full width of the room, or a sound that sits far left but occupies almost no spatial width at all. Understanding this separation is what allows you to sculpt a stereo field with real precision rather than just pushing faders left and right.
How to measure and control stereo width safely
Measuring stereo width accurately requires more than glancing at a single meter. The process involves layering several monitoring approaches so that nothing slips through.
-
Use a global correlation meter as your baseline. Set a target of +0.3 to +1.0 for your mix bus. This gives you a fast read on whether the overall stereo field is in a safe range.
-
Add a frequency-band correlation display. Multi-band correlation constraints catch narrow-band phase issues that global meters average away. Pay particular attention to the low-mids (200 Hz to 800 Hz), where cancellations are most damaging to perceived weight and warmth.
-
Listen in mono regularly. Flip your mix to mono at multiple points during the session. Mono listening reveals cancellations that even a well-configured meter can miss, because the ear catches tonal changes that a number cannot always represent.
-
Choose your widening method deliberately. Haas delay creates dramatic width by introducing timing differences between channels, but it causes comb filtering when the mix collapses to mono. Allpass decorrelation uses cascaded phase-shifting filters spaced on the ERB scale to produce perceptually even widening without affecting the magnitude spectrum, making it far safer for modern playback on phone speakers and streaming platforms.
-
Treat Mid/Side processing as a control tool, not a widening method. M/S processing splits the signal into center (Mid) and difference (Side) components. Boosting the Side level redistributes existing width but cannot create new stereo differences from a mono source. True widening requires adding new L/R differences through decorrelation or delay.
-
Check individual tracks, not just the bus. A single overprocessed element, like a synth pad with aggressive Haas delay, can drag the entire mix bus correlation into the danger zone. Measuring at the track level catches problems before they compound.
Pro Tip: When using Haas delay for width, keep the delay time under 20 ms and always check mono compatibility immediately after. If the element loses body or disappears, switch to an allpass decorrelation approach instead.
How psychoacoustics shapes your perception of stereo width
Physical measurement and perceived width are not the same thing. Apparent source width (ASW) is the psychoacoustic term for the perceived size of a sound source, and it depends on room acoustics, early reflections, and the radiation pattern of the source, not just the electrical signal reaching your speakers.
Two mixes with nearly identical IACC readings can sound dramatically different in perceived width because of how the listening environment processes those signals. A mix played in a live room with strong early reflections will sound wider than the same mix played in a heavily treated studio, even though the correlation meter reads the same value in both cases. This is not a flaw in measurement. It is a reminder that measurement describes the signal, not the full perceptual experience.
“Decorrelation between channels is the physical mechanism, but perceived width is the result of how the auditory system interprets those differences in context. Room acoustics, headphone vs. speaker playback, and even listener fatigue all shift the perception without changing the meter reading.” — Apparent source width
Stereo miking techniques add another layer of complexity. A coincident X-Y array produces a narrower stereo image than a spaced pair because the X-Y technique relies on level differences rather than timing differences between channels. The spaced pair captures genuine time-of-arrival differences, which the auditory system interprets as greater spatial width. This is why measuring width requires understanding the recording conditions, not just analyzing the final waveform. For a deeper look at how psychoacoustics applies to production decisions, Vector DSP’s guide covers the perceptual mechanisms in detail.
The practical takeaway for mixing is that your meters give you a floor, not a ceiling. Hitting a safe correlation range is necessary but not sufficient. You still need to listen critically across multiple playback environments to understand how your mix will actually be perceived.
Key takeaways
Stereo width measurement requires combining IACC correlation data, frequency-band analysis, and critical mono listening to build mixes that are both spatially engaging and fully mono compatible.
| Point | Details |
|---|---|
| IACC defines width numerically | Values from +1.0 (mono) to 0 (max width) to negative (phase problems) guide every spatial decision. |
| Safe correlation range is +0.3 to +1.0 | Mixes outside this range risk audible thinning or cancellation on mono playback devices. |
| Panning and width are separate axes | Decorrelation creates width; level differences create position. Confusing them leads to spatial errors. |
| Allpass decorrelation beats Haas for safety | Phase-based widening preserves the magnitude spectrum and survives mono summation without comb filtering. |
| Psychoacoustics extends beyond the meter | ASW and room acoustics shift perceived width independently of the correlation reading. |
Why I think most engineers measure stereo width too late
Most mixing engineers I have worked with check their stereo correlation once at the end of the session, right before export. That is the wrong time. By that point, you have already stacked a dozen decisions that compound each other, and untangling a correlation problem at the mix bus is far harder than catching it at the source.
The engineers who get spatial sound right treat correlation as a running diagnostic, not a final check. They flip to mono every 20 minutes. They check individual tracks, not just the bus. They know that a beautiful-sounding stereo reverb can be dragging their overall correlation into the caution zone without any single element sounding wrong in isolation.
The other thing I have seen consistently is overconfidence in M/S processing. Boosting the Side channel on a mix bus does not widen a mix. It amplifies existing differences, which can actually make phase problems louder rather than fixing them. Real width comes from decorrelation at the source, and no amount of M/S adjustment at the bus will substitute for that.
The 5 mix problems AI catches before mastering include exactly this kind of correlation issue, and catching it early is what separates a mix that translates everywhere from one that sounds great only on studio monitors. Trust your meters, but trust your mono playback more.
— Uygar
Analyze your stereo width with Mixanalytic
Knowing the theory is one thing. Seeing your actual mix data is another.

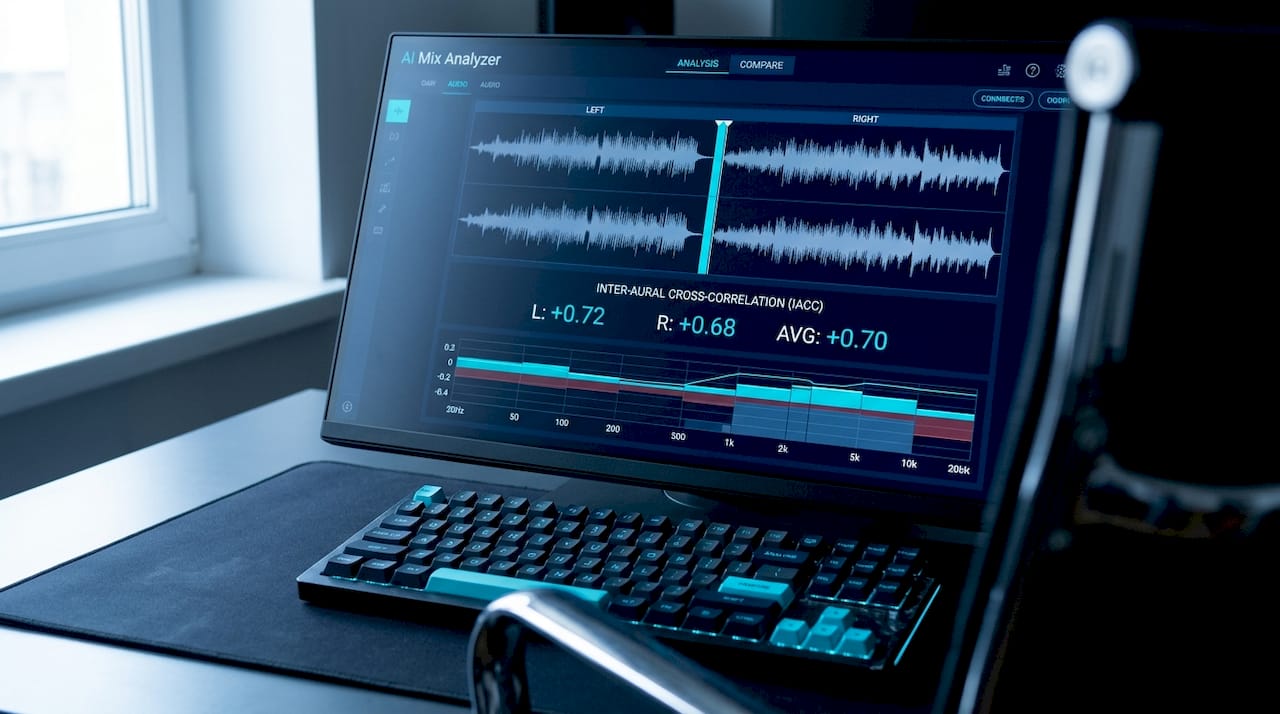

Mixanalytic’s free Mix Analyzer includes stereo width and correlation modules powered by AI, giving you IACC readings, frequency-band correlation displays, and mono compatibility flags in minutes. You get the same depth of stereo sound analysis that professional mastering engineers rely on, without the cost or turnaround time. Upload your track, read the spatial data, and fix problems before they reach the mastering stage. For producers working in immersive formats, the immersive audio guide extends these concepts into 3D spatial production. Thousands of engineers and independent artists already use Mixanalytic to make mixes that translate everywhere.
FAQ
What is stereo width measurement in audio?
Stereo width measurement quantifies the decorrelation between left and right audio channels using metrics like the IACC, where 1.0 equals mono and 0 equals maximum width. It tells you how spatially wide a mix sounds and whether it will hold up in mono playback.
What is a safe correlation range for a stereo mix?
Safe stereo mixes read between +0.3 and +1.0 on a correlation meter. Values below +0.3 risk thinning on mono devices, and negative values indicate audible phase cancellation.
How does panning differ from stereo width?
Panning shifts a sound’s position by changing level differences between channels, while stereo width depends on decorrelation, meaning actual differences in signal content between left and right. A center-panned stereo reverb can be very wide; a mono signal panned hard left is still narrow.
Why is mono listening important when measuring stereo width?
Correlation meters average the full spectrum and can miss narrow-band phase cancellations. Listening in mono reveals tonal changes and cancellations that meters do not always catch, making it a necessary complement to any measurement tool.
What is the difference between Haas delay and allpass decorrelation?
Haas delay creates width through timing differences between channels but causes comb filtering in mono. Allpass decorrelation uses phase-shifting filters to produce width without affecting the magnitude spectrum, making it far safer for mono playback on phones and streaming platforms.
